a.) No. 468 Adapter for diameters to 2 ½" - 15 gallon drums and most
No. 470 Adapter for 55-gallon drums with a 2' I.P.S. opening.
c.) Delaware Adapter used for Delaware containers with 2" buttress
d.) Hold Down Clamp recommended for use with No. 470 or Delaware Adapter.
e.) Rubber Boot for 2 1/2" mouth smooth bore jar. No clamp required,
Complete Adapter kit No. 10633 contains all the accessories above.
To Stop Flow, release air pressure by turning the release screw counter
To prevent personal injury, operator should always wear approved protective
goggles and clothing.
Important (Care of Pump)
For best results. Do not leave pump in container. Flush With Water After Each
Use. When not in use. Lift pump out of container. This removes the pump from
corrosion acid fumes.

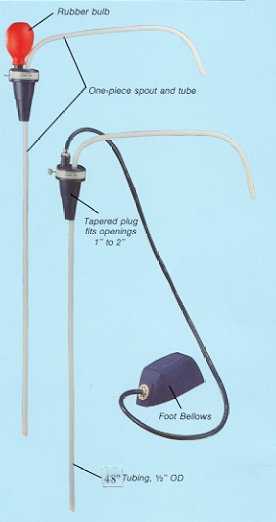

the electric model the foot bellows is replaced by the electric
pump and foot
switch. The pump is 115 volts, 2 amps.
